Growatt is the No.1 residential solar inverter supplier and is also one of the top 3 PV inverter suppliers for distributed generation solar energy since 2018 and ranks among the global top 10 PV inverter suppliers.
The World’s Manufacturer provides residential, commercial, and utility photovoltaic inverters, energy storage, microgrid systems, and smart energy management solutions.

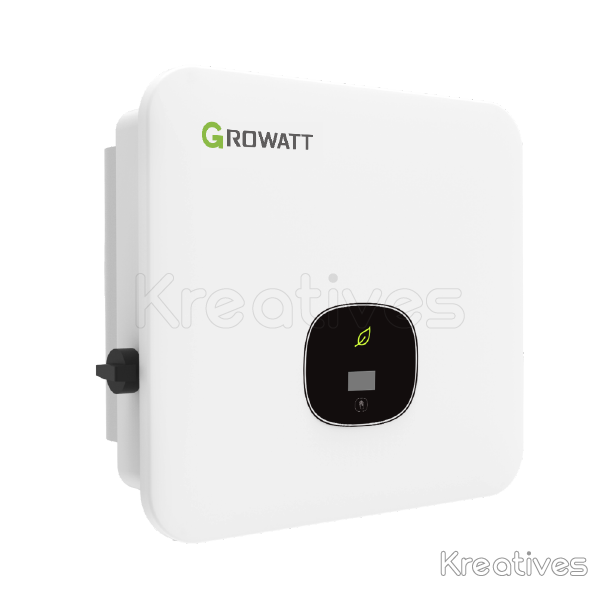

Growatt MOD 10KTL3-X Thre Phase Inverter 10000kW
- Max. efficiency 98.6%
- OLED and Touch button
- Type II SPD on DC and AC side
- String Monitoring
- AFCI optional
Technical Data
| Model | MOD 10KTL3-X | MOD 11KTL3-X | MOD 12KTL3-X | MOD 13KTL3-X | MOD 15KTL3-X |
| Max. recommended PV power | 15000W | 16500W | 18000W | 19500W | 22500W |
| Max. DC voltage | 1100V |
| Start Voltage | 200V |
| Nominal voltage | 580V |
| No. of MPP trackers | 2 |
| AC nominal power | 10000W | 11000W | 12000W | 13000W | 15000W |
| Nominal AC voltage | 220V/380V, 230V/400V (340-440V) | 50/60 Hz (45-55Hz/55-65 Hz) |
| Max. output current | 16.7A | 18.3A | 20A | 21.7A | 25A |
| MAX. efficient | 98.6% |
| AC/DC surge protection | Type II / Type II |
| Weight | 14kg | 14kg | 16kg | 16kg | 16kg |
| Dimensions | 425/387/178mm |
| Interfaces: USB/RS485/WIFI /GPRS//LAN/RF | yes/yes/Optional/Optional/Optional/Optional |
| Warranty: 5 / 10 years | Yes/Optional |
